Technical Data:
| Model Number | SMV300P1-90 | SMV300P2-90 |
| Head configuration | Pressure parallel flow | Pressure parallel flow |
| Nominal voltage | 110V/60Hz | 220V/50Hz |
| Maximum Current | 3.5A | 1.8A |
| Maximum power | 280W | 280W |
| Maximum flow | 90L/min | 90L/min |
| Maximum vacuum degree | -88Kpa | -88Kpa |
| Speed at rated load | 1650rpm | 1400rpm |
| Noise | ＜53dB(A) | ＜53dB(A) |
| Maximum pressure restart | 0PSI | 0PSI |
| Motor type [Capacitance] | P.S.C(20uF) | P.S.C(10uF) |
| Motor insulation class | B | B |
| Thermal switch [Open temperature] | Thermally protected（145℃） | Thermally protected（145℃） |
| Line Lead wire color ,guage | White (hot),black(neutral),18AWG | Brown(hot),blue(neutral),18AWG |
| Operating ambient air temperature | 50° to 104°F(10° to 40℃） | 50° to 104°F(10° to 40℃） |
| Safety certification | ETL | ETL |
| Net Weight | 6kg | 6kg |

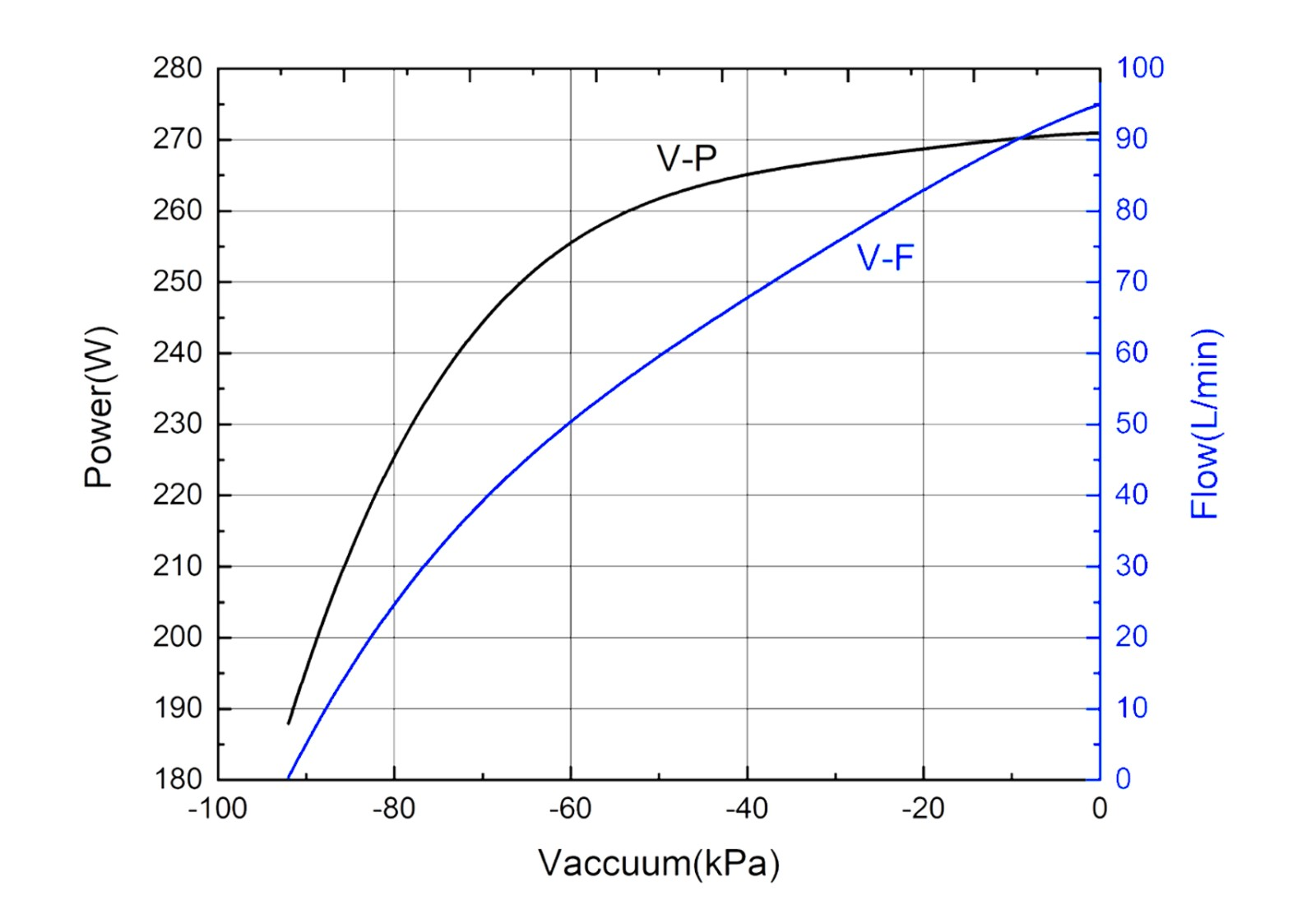

Performance Chart :

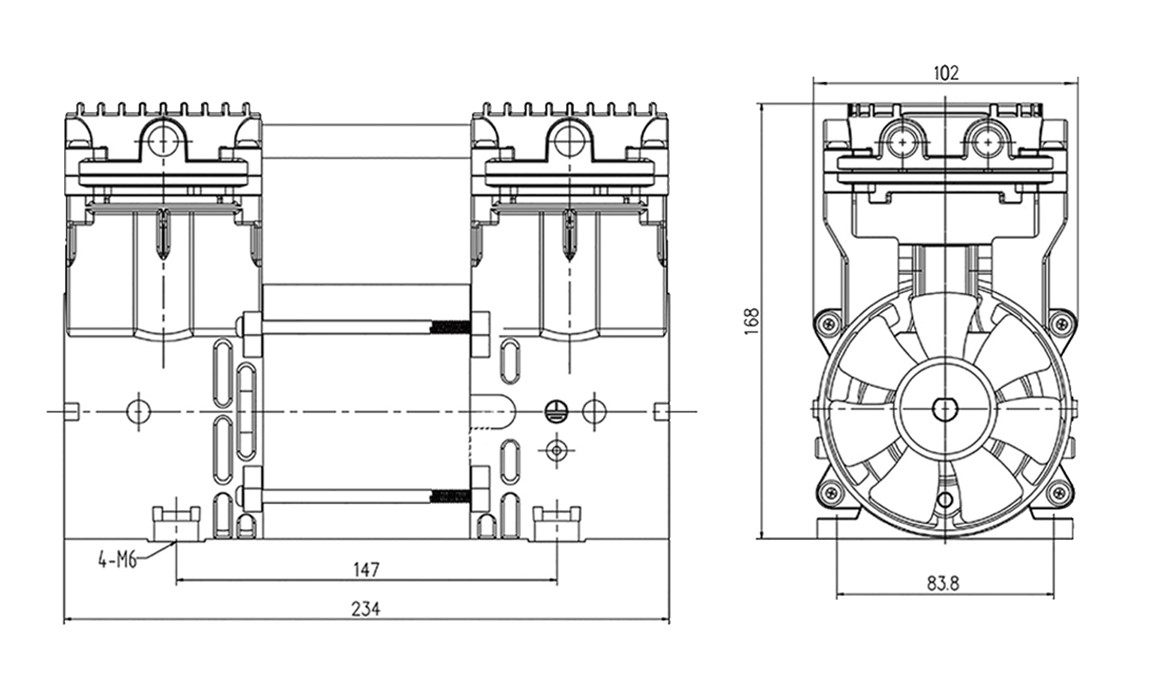

Dimensions:
