CBB61-AC MOTOR CAPACITOR Fan Celling Capaictor

Introduction

Introduction

Xunwande

The CBB61 capacitor are made of metallized polypropylene film,noninductive construction, encapsulated in a plastic case,-sealed with epoxy resin,fetch out in many ways.

● Stable reliability

● Excellent Self-healing property

Widely applied to starting and running of AC single-phase

synchronism motors at 50Hz/60Hz frequency power.

★ S3 certification

It is applied in electric fan, exhaust fan, electric pump, and electrc sewing machine, gasoline generators, etc. It is helpful for motor's starting and running

Products Description

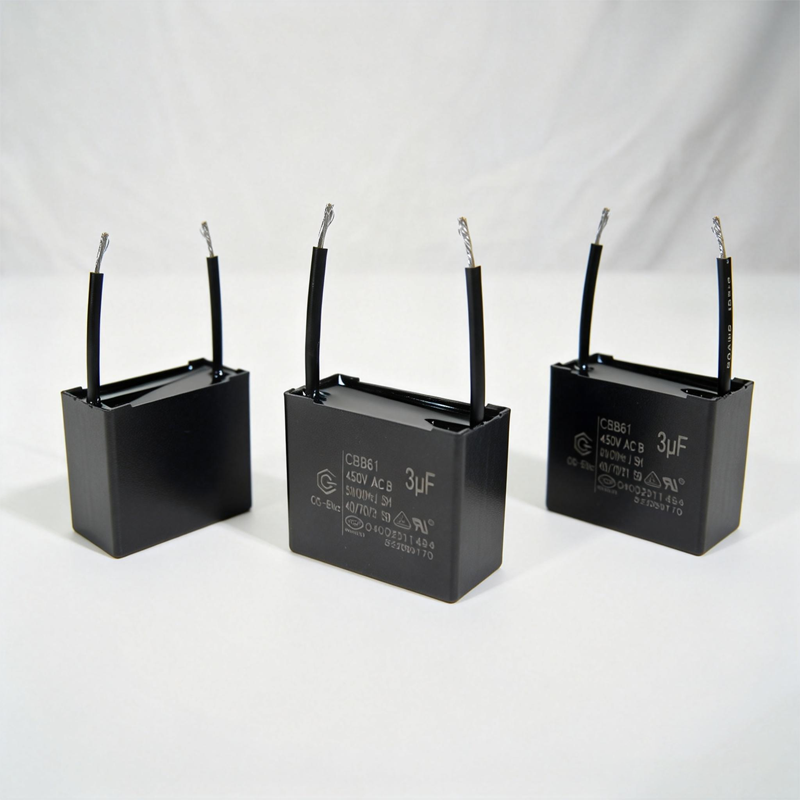

cbb61 3uf capacitor with lead type ,we have 1UF ~20UF cbb61 capacitor and all capacitor with TUV CE UL VDE ROHS UQ certification

Product Paramenters

Common Dimension Unit: mm
Rated Cap	250VAC	350VAC	400VAC	450VAC	500VAC
Rated Cap	LWH	LWH	LWH	LWH	LWH
1.0UF	321222	321020	——	371122	3712.522
1.2UF	321222	——	321222	371122	3713.524
1.5UF	321222	——	371122	3713.524	——
1.8UF	321222	——	——	371525	——
2.0UF	321222	——	3713.524	371525	371728
2.2UF	321222	——	——	371728	——
2.5UF	321222	371525	371525	371525	——
2.8UF	321222	——	——	371930	——
3.0UF	321222	371728	381728	3718.529	471633
3.2UF	——	——	——	371930	——
3.5UF	3712.522	——	——	3819.531	——
3.8UF	——	——	——	371930	——
4.0UF	3712.522	3718.529	3718.529	471731	4719.533
5.0UF	3713.524	——	3819.531	482235	472335
6.0UF	371525	——	——	482235	472437
8.0UF	371728	——	482235	472737	582638
10UF	3819.531	——	——	582638	——
12UF	471731	——	——	593042	——
15UF	472033	——	——	583243	——
20UF	483522	——	——	683045	——
