Oil-Free Vacuum Pump 40L/min forMedical Applications
Technical Data:

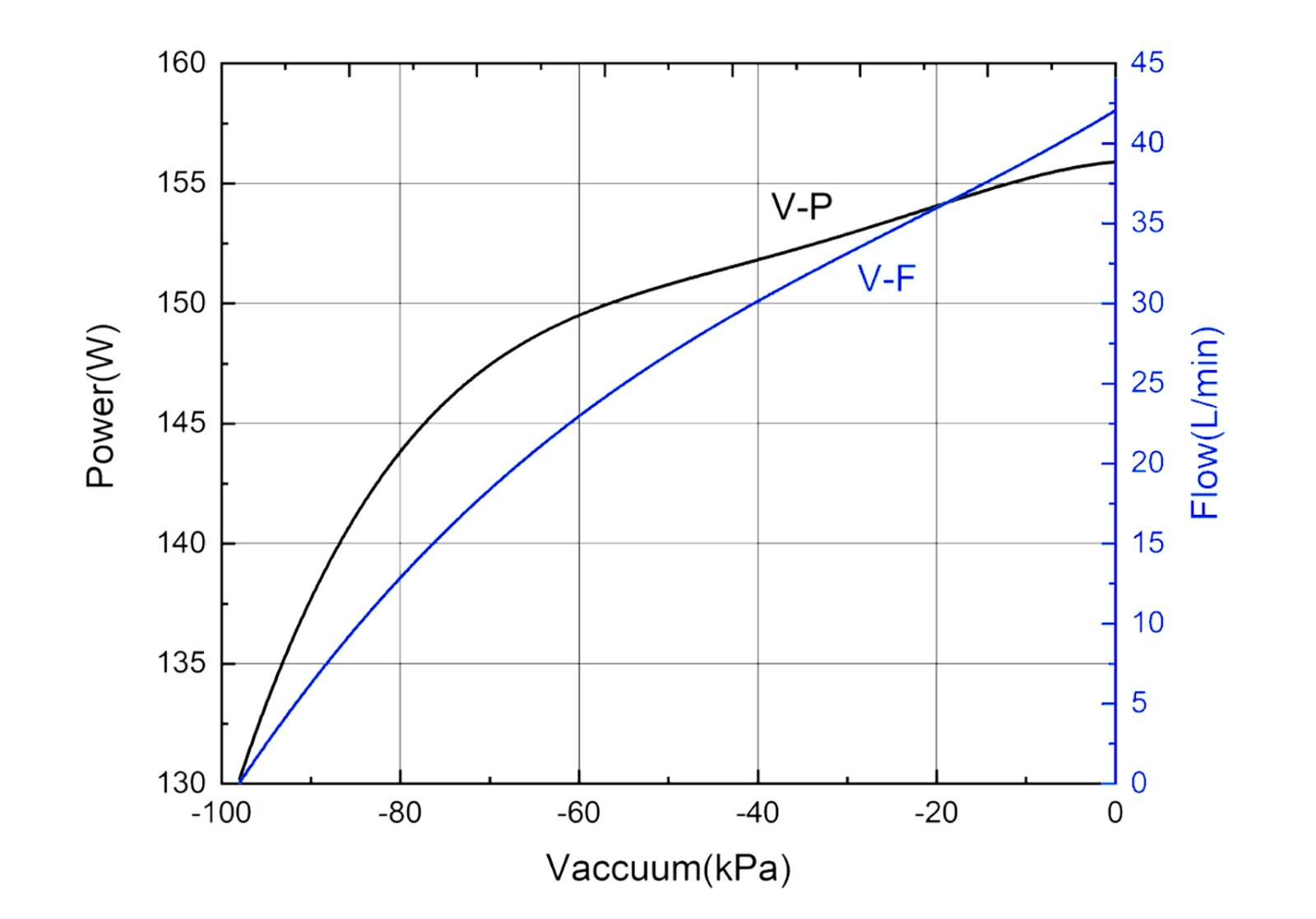

Performance Data | ||
Head configuration |
Pressure parallel flow |
Pressure parallel flow |
Model Number |
SMV160P1-40H |
SMV160P2-40H |
Nominal voltage/frequency |
110V/60Hz/1 |
220V/50Hz/1 |
Maximum Current |
1.7 A |
0.85 A |
Maximum power |
160 W |
160 W |
Maximum flow |
40 L/min |
40 L/min |
Maximum vacuum degree |
-97 KPa |
-97 KPa |
Speed at rated load |
1650 rpm |
1400 rpm |
Noise |
< 53dB(A)
|
<53dB(A)
|
Maximum pressure restart |
0 PSI |
0 PSI |
Electrical Data | ||
Motor type [Capacitance] |
P.S.C(9uF) |
P.S.C 4.5uF |
Motor insulation class |
B |
B |
Thermal switch [Open temperature] |
Thermally protected 145℃ |
Thermally protected 145℃ |
Line lead wire color, gauge |
White(hot), black(neutral), 20 AWG |
Brown(hot), blue(neutral), 20AWG |
Capacitor lead wire color, gauge |
Blue, blue, 20 AWG |
Black, black, 20 AWG |
General Data | ||
Operating ambient air temperature |
50°to 104°F(10℃ to 40℃) |
50°to 104°F - 10℃ to 40℃ |
Safety certification |
ETL |
ETL |
Net weight |
3.5 Kg |
3.5 Kg |
