Twin piston oilfree oilless High Performance Vacuum Pump 90L/min
OILLESS VACUUM PUMP: Twin Piston 0.4 HP 3.2CFM Oilless Vacuum Pump for Milker Machine Pulsator Hookup,
Applications Like :Medical aspirator and Laboratory and Workshop Push and pull/compressing and vacuum capable. vacuum bagging/packing etc.
Technical Data :
| Model Number | SMV300P1-90 | SMV300P2-90 |
| Head configuration | 110V/60Hz/1 | 220V/50Hz/1 |
| Maximum Current | 280W | 280W |
| Maximum flow | 90L/min | 90L/min |
| Maximum vacuum degree | -88Kpa | -88Kpa |
| Speed at rated load | 1650rpm | 1400rpm |
| Noise | ＜53dB(A) | ＜53dB(A) |
| Maximum pressure restart | 0PSI | 0PSI |
| Motor type(capacitance) | P.S.C(20uF) | P.S.C(10uF) |
| Motor Insulation class | B | B |
| Thermal switch (open temperature) | Thermally protected(145℃） | Thermally protected(145℃） |
| Line lead wire color ,gauge | White (hot),black(neutral),18AWG | Brown(hot),blue(neutral),18AWG |
| Capacitor lead wire color,gauge | Blue,blue,18AWG | Black,black ,18AWG |
| Operating ambient air temperature | 50° to 104°F(10° to 40℃） | 50° to 104°F(10° to 40℃） |
| Safety certification | ETL | ETL |
| Net Weight | 6kg | 6kg |

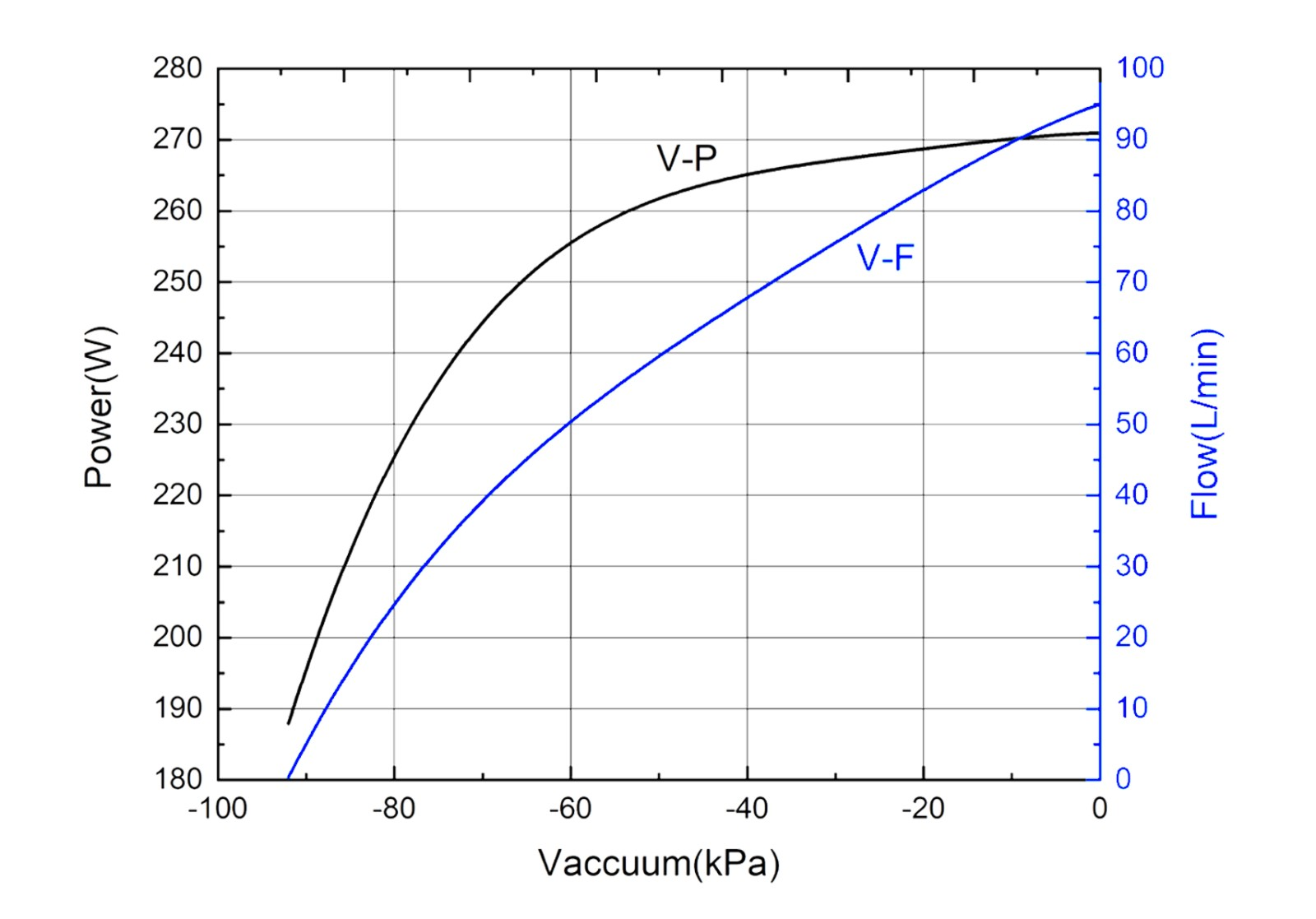

Performance Chart :

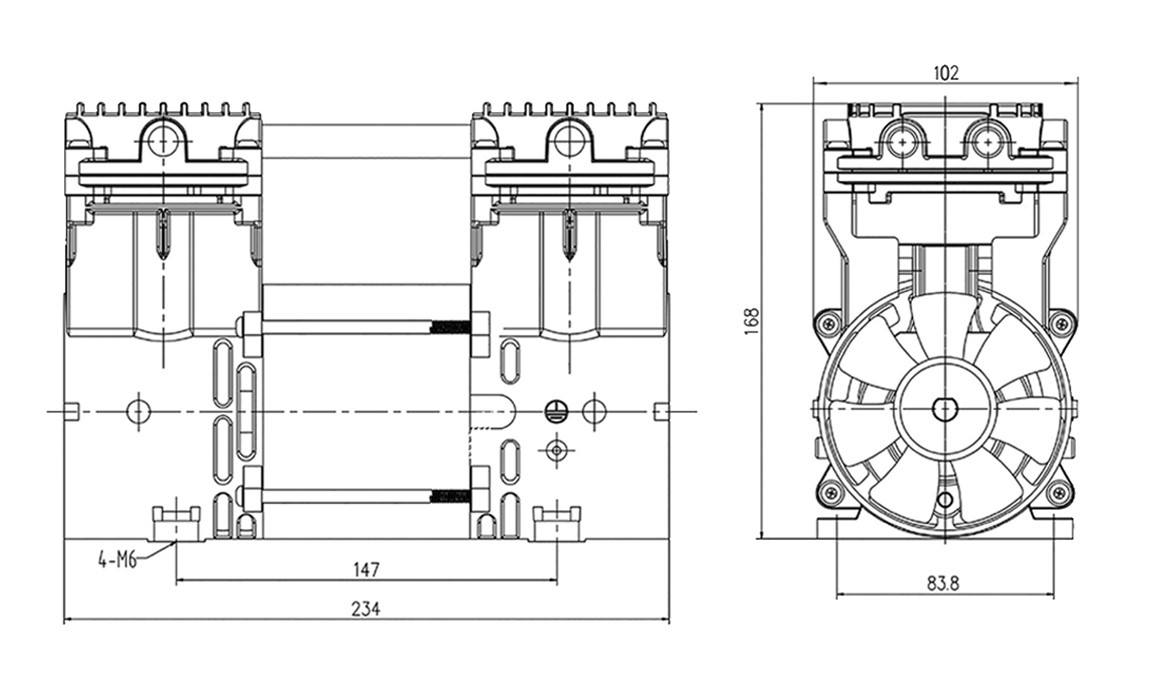

Dimensions:
