Technical Data:
| NOTE: All test values are nominal and for reference only. They are not guaranteed maximum or minimum limits, nor do they imply mean or median. | |||
| Model Number | SMK60D | ||
| Head configuration | Pressure parallel flow | Pressure parallel flow | Pressure parallel flow |
| Nominal voltage | 12VDC | 12VDC | 12VDC |
| Variable output speed | 1000 rpm | 2000 rpm | 3000 rpm |
| Max.open air flow | 5L/min | 10L/min | 14.5L/min |
| Max.rated pressure | 20 PSI | 30 PSI | 30 PSI |
| Current at rated pressure | 3.5A | 4.2A | 5A |
| Power at rated pressure | 42W | 50W | 60W |
| Electrical Data | |||
| Motor insulation class | F | ||
| Motor protection | Not included-Customer to integrate into system controller | ||
| Power lead wire color,gauge | Green(phase A),black(phase B),red(phase C),22AWG | ||
| Hall sensor wire color,gauge | Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG | ||
| General Data | |||
| Operating ambient air temperature | 32° to 104°F(0° to 60°C) | ||
| Safety certification | ETL | ||
| Dimension(LXWXH) | 90*47*75mm | ||
| Net weight | 0.39KG | ||
| Application | Portable medical battery pulse oxygen concentrator | ||

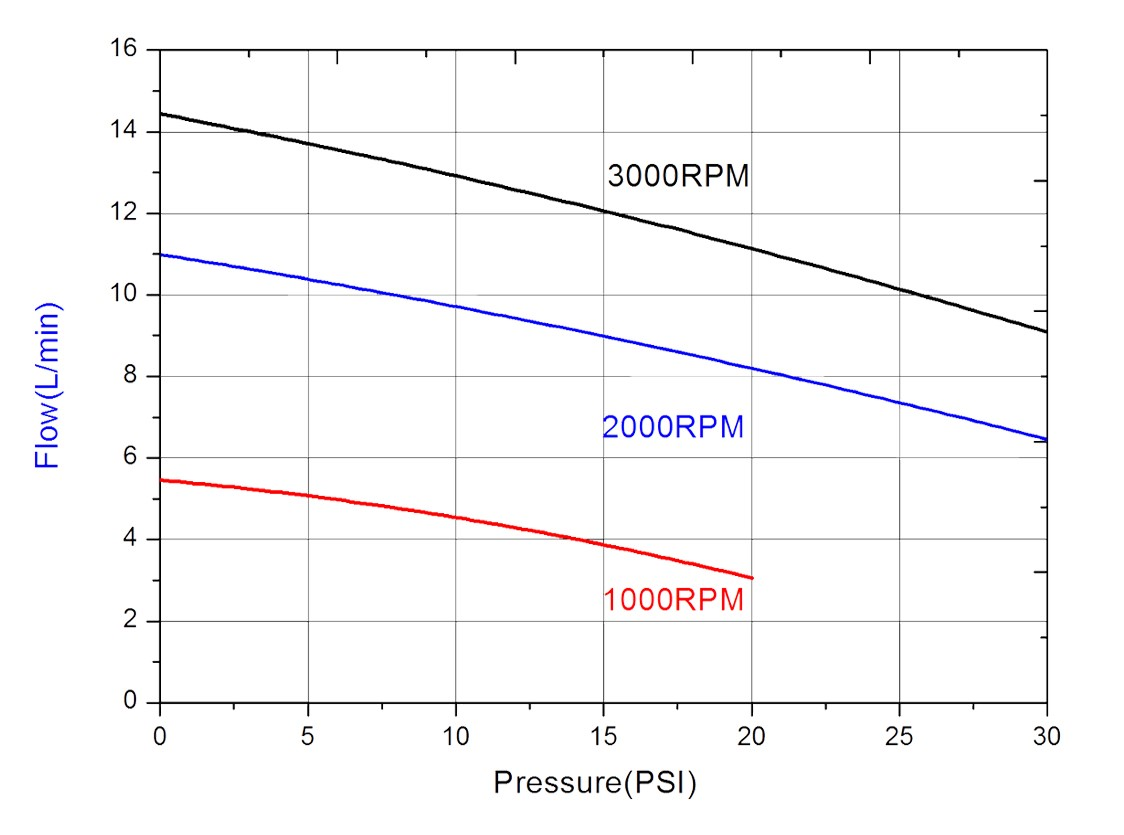

Performance Chart :

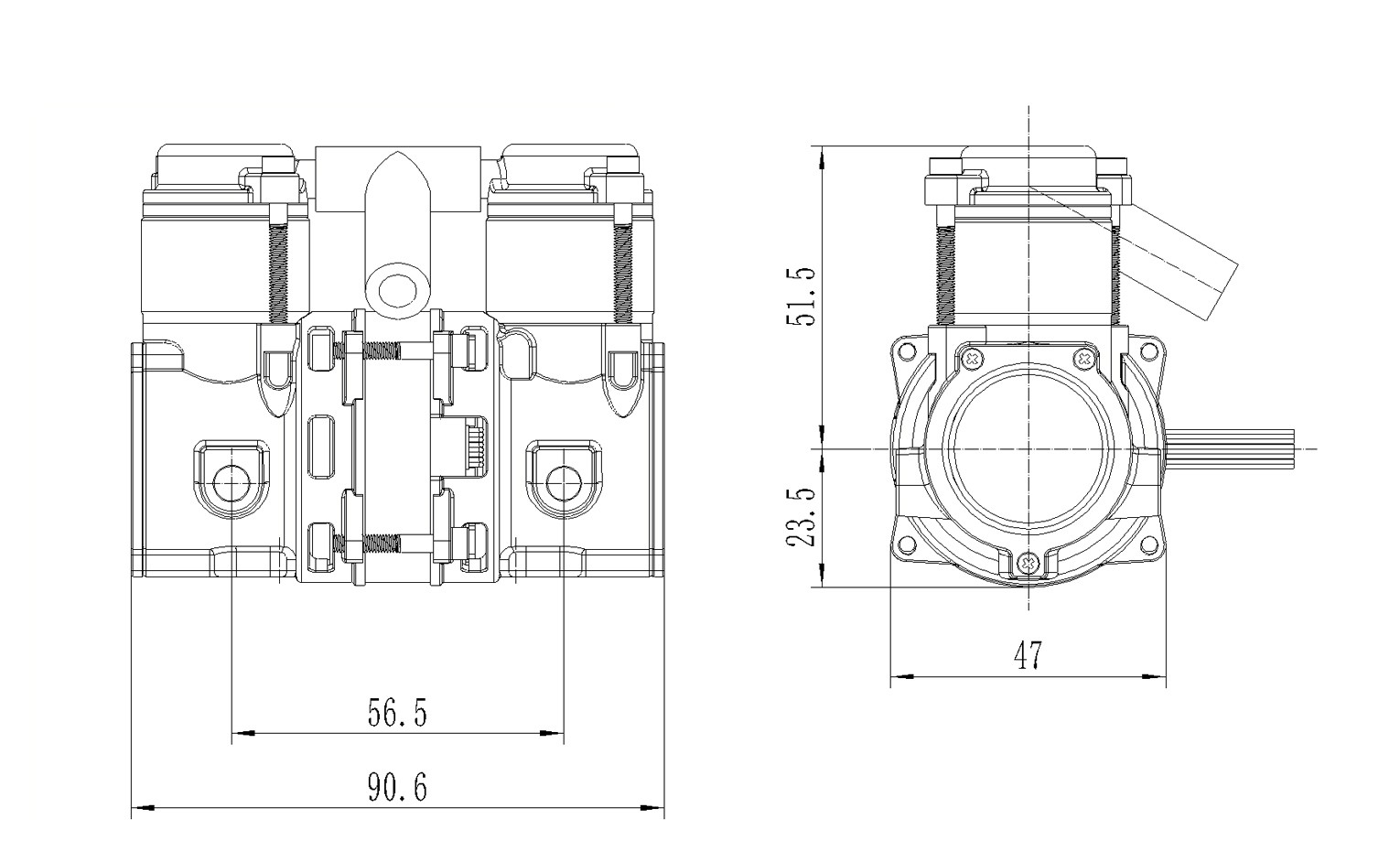

Dimensions:
