. No air pollution, maintenance free
.The oil-free piston vacuum pump provides continuous, reliable, high flow vacuum for your container ,
. The Core compoent warrnty 1 years
| Model Number | SMV400P1-120 | SMV400P2-120 |
| Head configuration | Pressure parallet flow | Pressure parallet flow |
| Nominal voltage /frequency | 110v/60Hz/1 | 220v/50Hz/1 |
| Maximum Current | 420W | 420W |
| Maximum flow | 120L/min | 120L/min |
| Maximum vacuum degree | -92Kpa | -92Kpa |
| Speed at rated load | 1650rpm | 1400rpm |
| Noise | ＜55dB(A) | <55dB(A) |
| Maximum pressure restart | 0PSI | 0PSI |
| Motor type(Capacitance) | P.S.C(35uF) | P.S.C(12uF) |
| Motor insulation class | B | B |
| Thermal switch (Open temperature) | Thermally proteced(145℃） | Thermally proteced(145℃） |
| Line lead wire color,gauge | White (hot) ,black(neutral),18AWG | Brown (hot) ,blue(neutral),18AWG |
| Capacitor lead wire color,gauge | blue,blue,18AWG | Black,black,18AWG |
| Operating ambient air temperature | 50° to 104°F（10° to 40℃） | 50° to 104°F（10° to 40℃） |
| Safety certification | ETL | ETL |
| Net Weight | 8.5kg | 8.5kg |

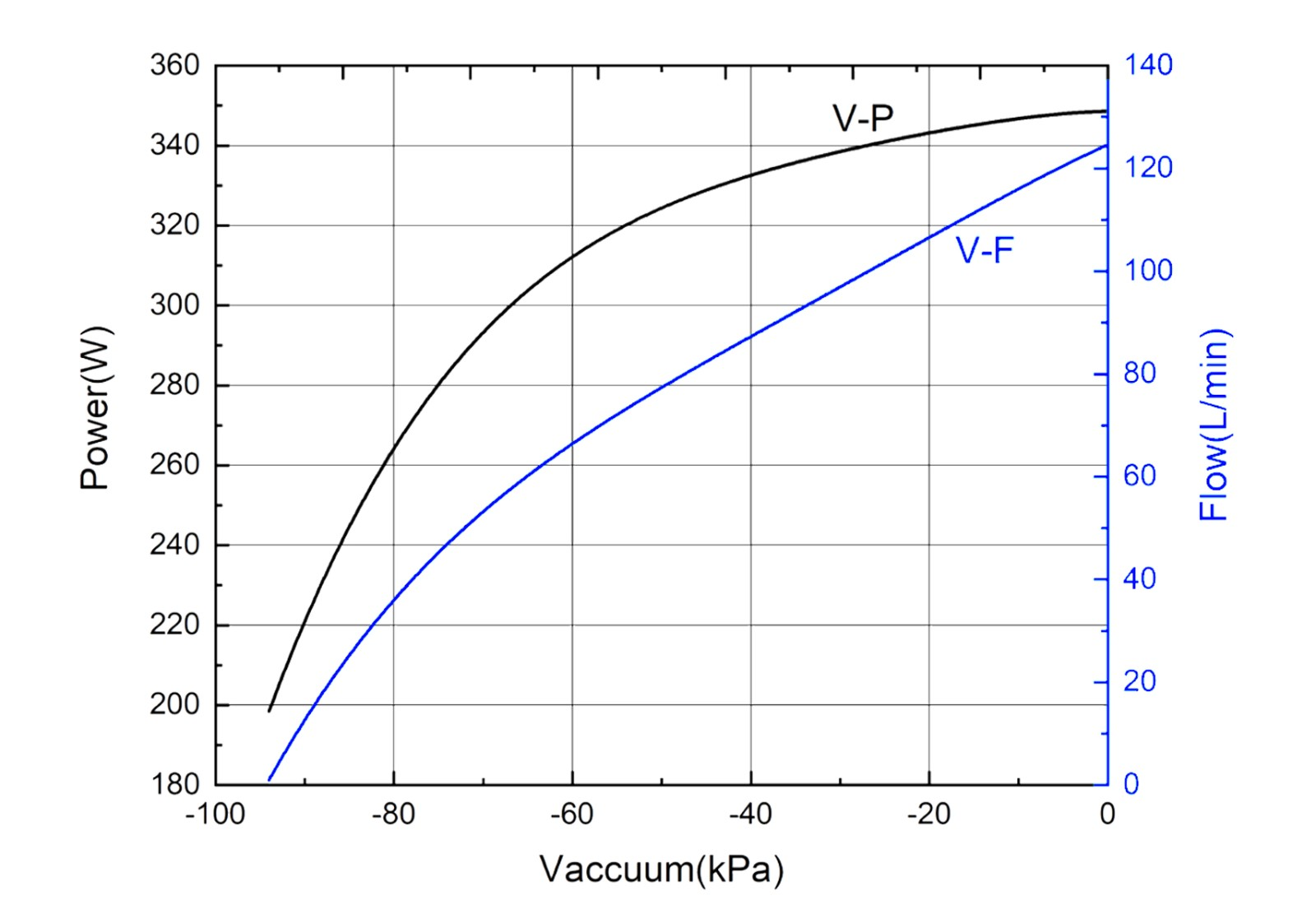

Performance Chart
