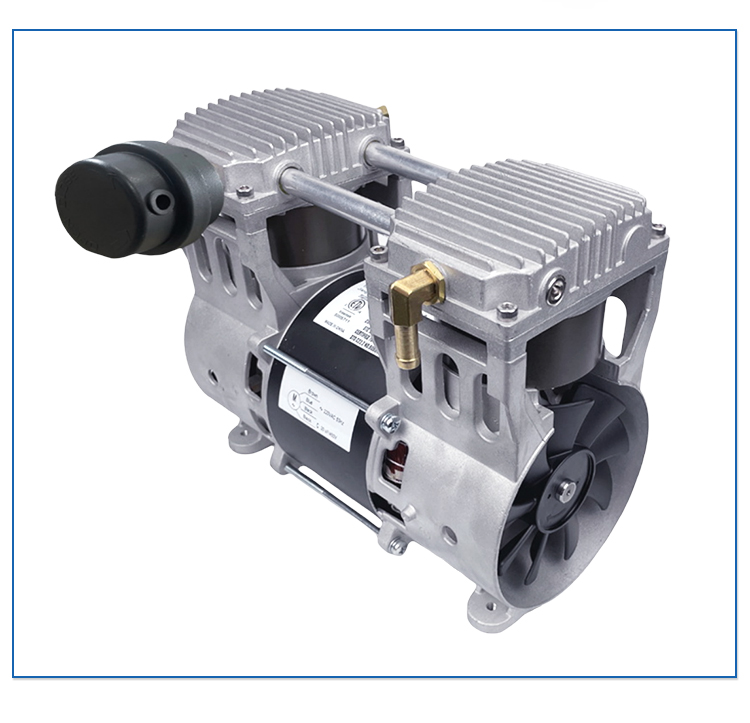

SMV800P-140 Oil-Free Vacuum Pump: clean vacuum for industry, and ready for medical, laboratory, and food and beverage applications. No oil, no contamination, less maintenance.
Typical Application :
Medical aspirator ,Vacuum packing, Milker Machine,Fitting or packaging machine

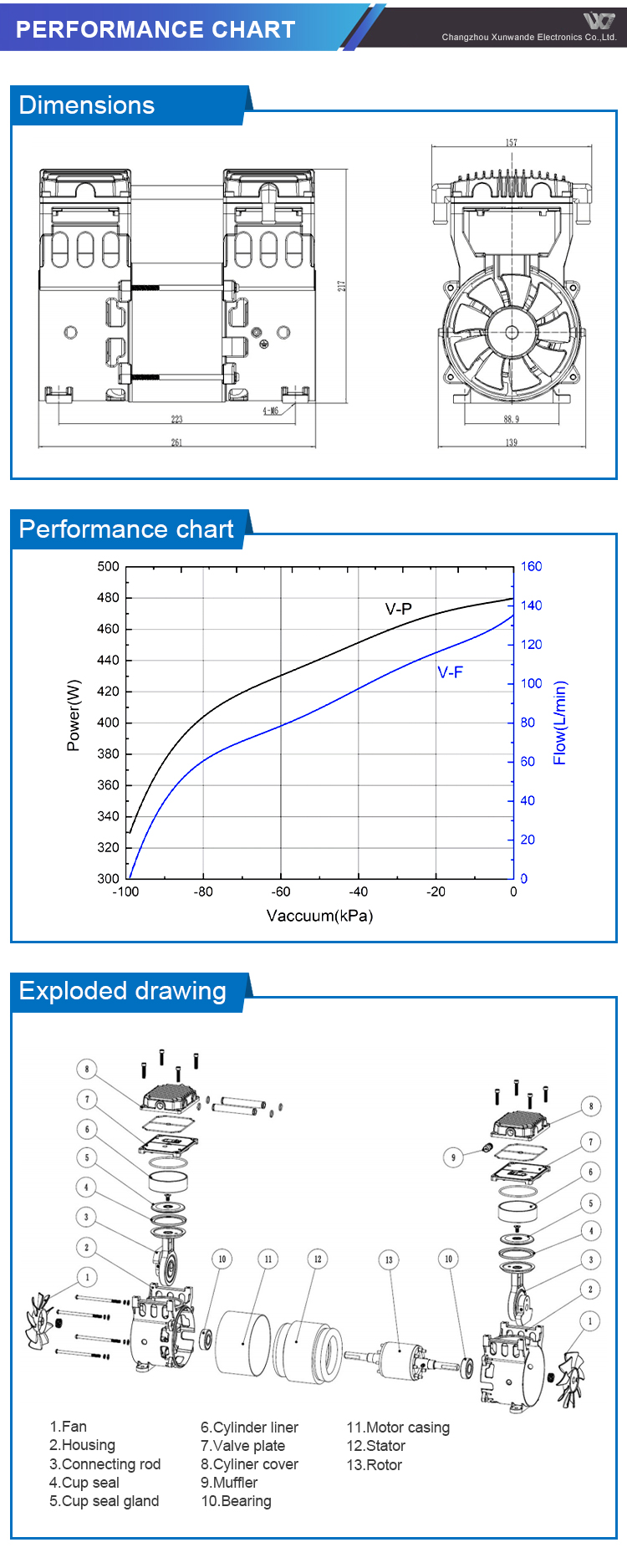

Performance Data | ||
Model Number |
SMV800P1-140H |
SMV800P2-140H |
Head configuration |
Pressure parallel flow |
Pressure parallel flow |
Nominal voltage/frequency |
110V/60Hz/1 |
220V/50Hz/1 |
Maximum Current |
8 A |
4 A |
Maximum power |
620 W |
650 W |
Maximum flow |
135L/min |
135L/min |
Maximum vacuum degree |
-98KPa |
-98 KPa |
Speed at rated load |
1650 rpm |
1400 rpm |
Noise |
<58 dB(A)
|
<58 dB(A)
|
Maximum pressure restart |
0 PSI |
0 PSI |
Electrical Data | ||
Motor type [Capacitance] |
P. S. C(45uF) |
P. S. C(20uF) |
Motor insulation class |
B |
B |
Thermal switch [Open temperature] |
Thermally protected(145℃) |
Thermally protected(145℃) |
Line lead wire color, gauge |
White(hot), black(neutral), 18AWG |
Brown(hot), blue(neutral), 18AWG |
Capacitor lead wire color, gauge |
Blue, blue, 18 AWG |
Black, black, 18 AWG |
General Data | ||
Operating ambient air temperature |
50°to 104°F(10℃ to 40℃) |
50°to 104°F(10℃ to 40℃) |
Safety certification |
ETL |
ETL |
Net weight |
12 Kg |
12 Kg |
