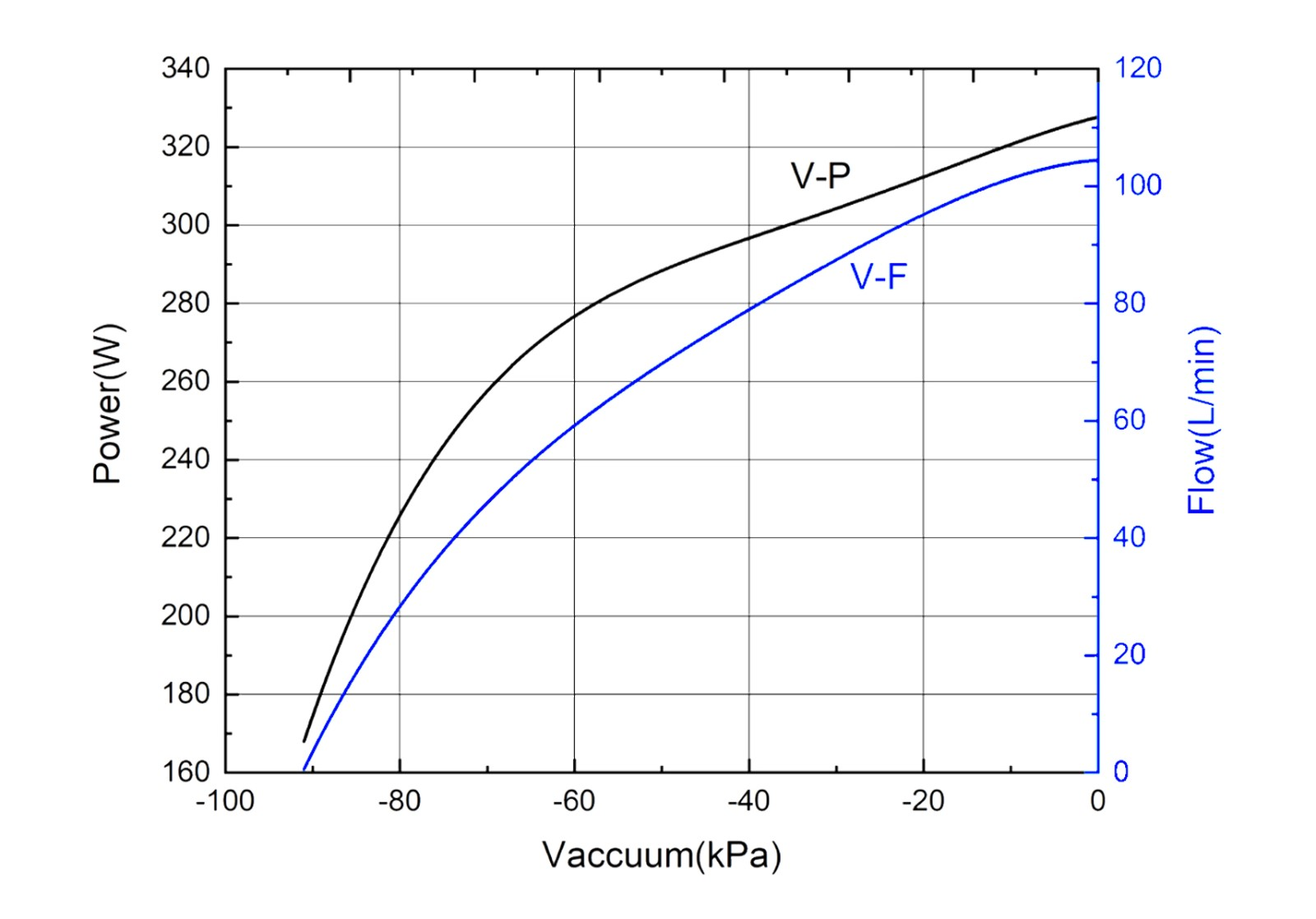

Performance Data | ||
Model Number |
SMV400P1-100 |
SMV400P2-100 |
Head configuration |
Pressure parallel flow |
Pressure parallel flow |
Nominal voltage/frequency |
110V/60Hz/1 |
220V/50Hz/1 |
Maximum Current |
4 A |
2 A |
Maximum power |
380 W |
380 W |
Maximum flow |
100 L/min |
100 L/min |
Maximum vacuum degree |
-90KPa |
-90 KPa |
Speed at rated load |
1650 rpm |
1400 rpm |
Noise |
<55 db="">
|
<55 db="">
|
Maximum pressure restart |
0 PSI |
0 PSI |
Electrical Data | ||
Motor type [Capacitance] |
P. S. C(35uF) |
P. S. C(12uF) |
Motor insulation class |
B |
B |
Thermal switch [Open temperature] |
Thermally protected(145℃) |
Thermally protected(145℃) |
Line lead wire color, gauge |
White(hot), black(neutral) 18AWG |
Brown(hot), blue(neutral) 18AWG |
Capacitor lead wire color, gauge |
Blue, blue, 18 AWG |
Black, black, 18 AWG |
General Data | ||
Operating ambient air temperature |
50°to 104°F(10℃ to 40℃) |
50°to 104°F(10℃ to 40℃) |
Safety certification |
ETL |
ETL |
Net weight |
8.5 Kg |
8.5 Kg |
