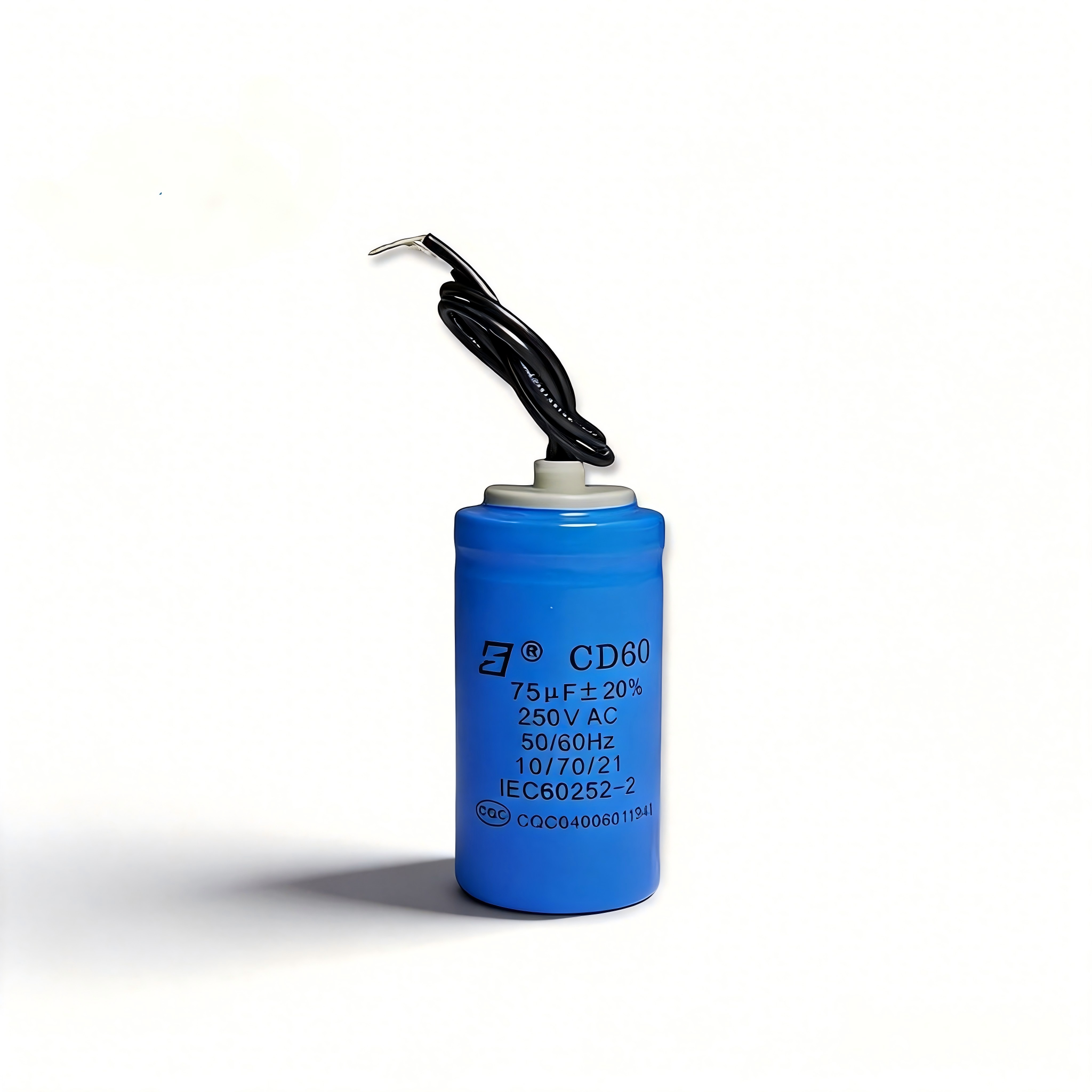

The CD60 start capacitor is widely used in a variety of single-phase AC motor applications:
Water Pumps – Submersible pumps, well pumps, booster pumps, irrigation pumps
Residential & Industrial Motors – Single-phase motors requiring high starting torque
Washing Machines
Fans & Blowers
Air Compressors
Generators
The main technical data:
| Rate Voltage | 110V.AC~330V.AC |
| Capacitance | 20~60uF |
| Capacitance Tolerance | ±20% (M) ,±15%(L) ,-10~30% |
| Dissipation Factor | ≤15%（100Hz) |
| Climatic Cctegory | -25℃~70℃ |
| Withstand Vlotage | T-T UL:1.2Un/2S |
| T-C ≥2000VAC/2S | |
| Life Class | 30000 times |
| Apply Certificate | CQC,UL |
