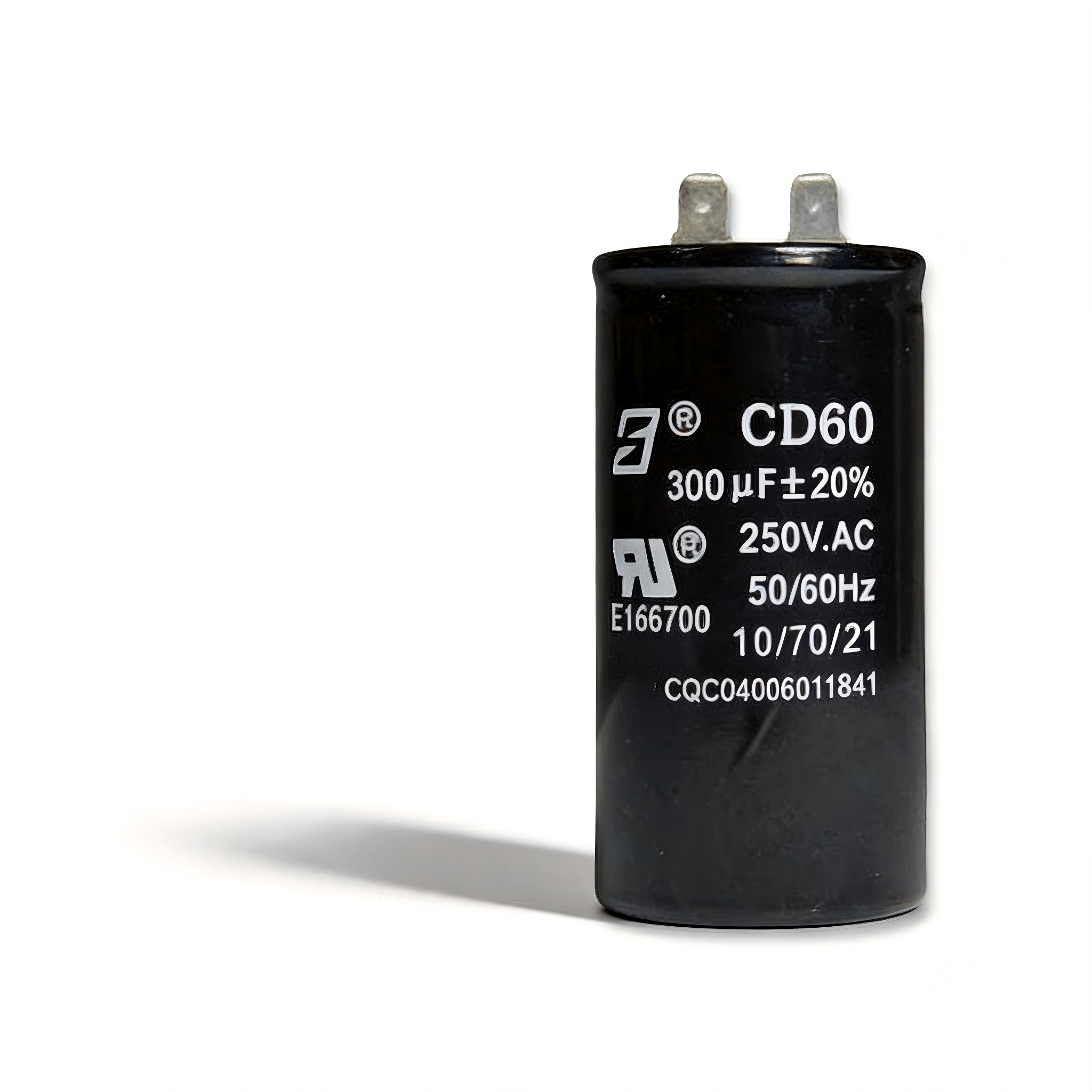

PRODUCT MODEL: CD60 model water pum start capacitor
PRODUCT INTRODUCTION: Use energized aluminum and double -density electrolysis paper winding and immerse
with special electrolyte and encapsulation with aluminum case,outlet by electric wire or copper terminal.
MAIN FEATURES：Small dimension . big capacitance .light weight .high stability.
APPLICATION:
The capacitors are mainly apply to the 50/60hz power supply and it's the essential components for big power
single-phase AC motors, help to start big power single-phase AC motors.
REFRENCE STANDARD:IEC6025-2 GB/T3667.2
Main technical parameters
| Rate Voltage | 110V.AC~330V.AC |
| Capacitance | 20~600uF |
| Capacitance Tolerance | ±20%（M），±15%(L) -10~30% |
| Dissipation Factor | ≤15%（100Hz） |
| Climatic Cctegory | -25℃~70℃ |
| Withstand Voltage | T-T UL:1.2Un/2s |
| T-C ≥2000VAC/2S | |
| Life Class | 30000times |
| Apply Certificate | CQC,UL |
