Feature：
Oil-free rocking piston vacuum pump, Non-lubricated cup and cylinder, Long-life cup design, Stainless-steel valves, Thin wall cylinder for good heat transfer.
Application：
Food machine, Vacuum drying oven, Deaeratiion machine, Laminator/LED test machine, Robotic arms, Vacuum packing, Cow Milker Machine, Fitting/packaging machine, Medical/Dental offices, Laboratory, workshop science, vacuum packing, goat milker station powering.

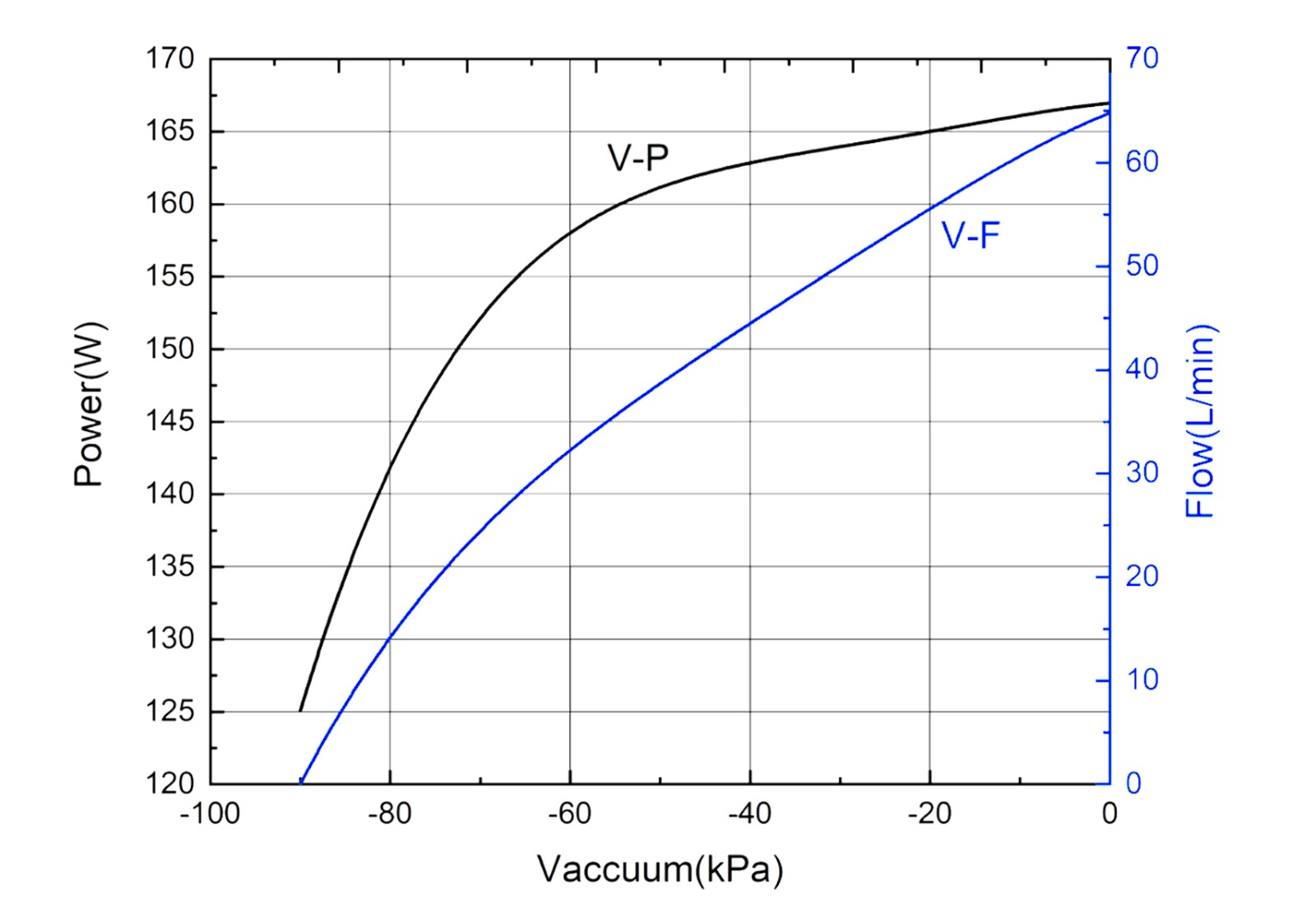

Performance Data | ||
Head configuration |
Pressure parallel flow |
Pressure parallel flow |
Model Number |
SMV200P1-60 |
SMV200P2-60 |
Nominal voltage/frequency |
110V/60Hz/1 |
220V/50Hz/1 |
Maximum Current |
2.2 A |
1.1 A |
Maximum power |
200 W |
200 W |
Maximum flow |
60 L/min |
60 L/min |
Maximum vacuum degree |
-88 KPa |
-88 KPa |
Speed at rated load |
1650 rpm |
1400 rpm |
Noise |
＜53dB (A） | <53 dB(A)
|
Maximum pressure restart |
0 PSI |
0 PSI |
Electrical Data | ||
Motor type [Capacitance] |
P. S. C(14uF) |
P. S. C(6.5uF) |
Motor insulation class |
B |
B |
Thermal switch [Open temperature] |
Thermally protected(145℃) |
Thermally protected(145℃) |
Line lead wire color, gauge |
White(hot), black(neutral), 20 AWG |
Brown(hot), blue(neutral), 20AWG |
Capacitor lead wire color, gauge |
Blue, blue, 18 AWG |
Black, black, 18 AWG |
General Data | ||
Operating ambient air temperature |
50°to 104°F(10℃ to 40℃) |
50°to 104°F(10℃ to 40℃) |
Safety certification |
ETL |
ETL |
Net weight |
4 Kg |
4Kg |
