Technical Data :
Performance Data | ||
Model number |
SMV100P1-22H |
SMV100P2-22H |
Head configuration |
Pressure parallel flow |
Pressure parallel flow |
Nominal voltage/frequency |
110V/60Hz/1 |
220V/50Hz/1 |
Maximum Current |
1.2 A |
0.6A |
Maximum power |
100 W |
100 W |
Maximum flow |
22L/min |
22 L/min |
Maximum vacuum degree |
-93KPa |
-93KPa |
Speed at rated load |
1650 rpm |
1400 rpm |
Noise |
＜53dB(A) | ＜53dB(A) |
Maximum pressure restart |
0 PSI |
0 PSI |
Electrical Data | ||
Motor type [Capacitance] |
P. S. C(20uF) |
P. S. C(10uF) |
Motor insulation class |
B |
B |
Thermal switch [Open temperature] |
Thermally protected(145℃) |
Thermally protected(145℃) |
Line lead wire color, gauge |
White(hot), black(neutral) 18AWG |
Brown(hot), blue(neutral) 18AWG |
Capacitor lead wire color, gauge |
Blue, blue, 18 AWG |
Black, black, 18 AWG |
General Data | ||
Operating ambient air temperature |
50°to 104°F(10℃ to 40℃) |
50°to 104°F(10℃ to 40℃) |
Safety certification |
ETL |
ETL |
Net weight |
2.4 Kg |
2.4Kg |

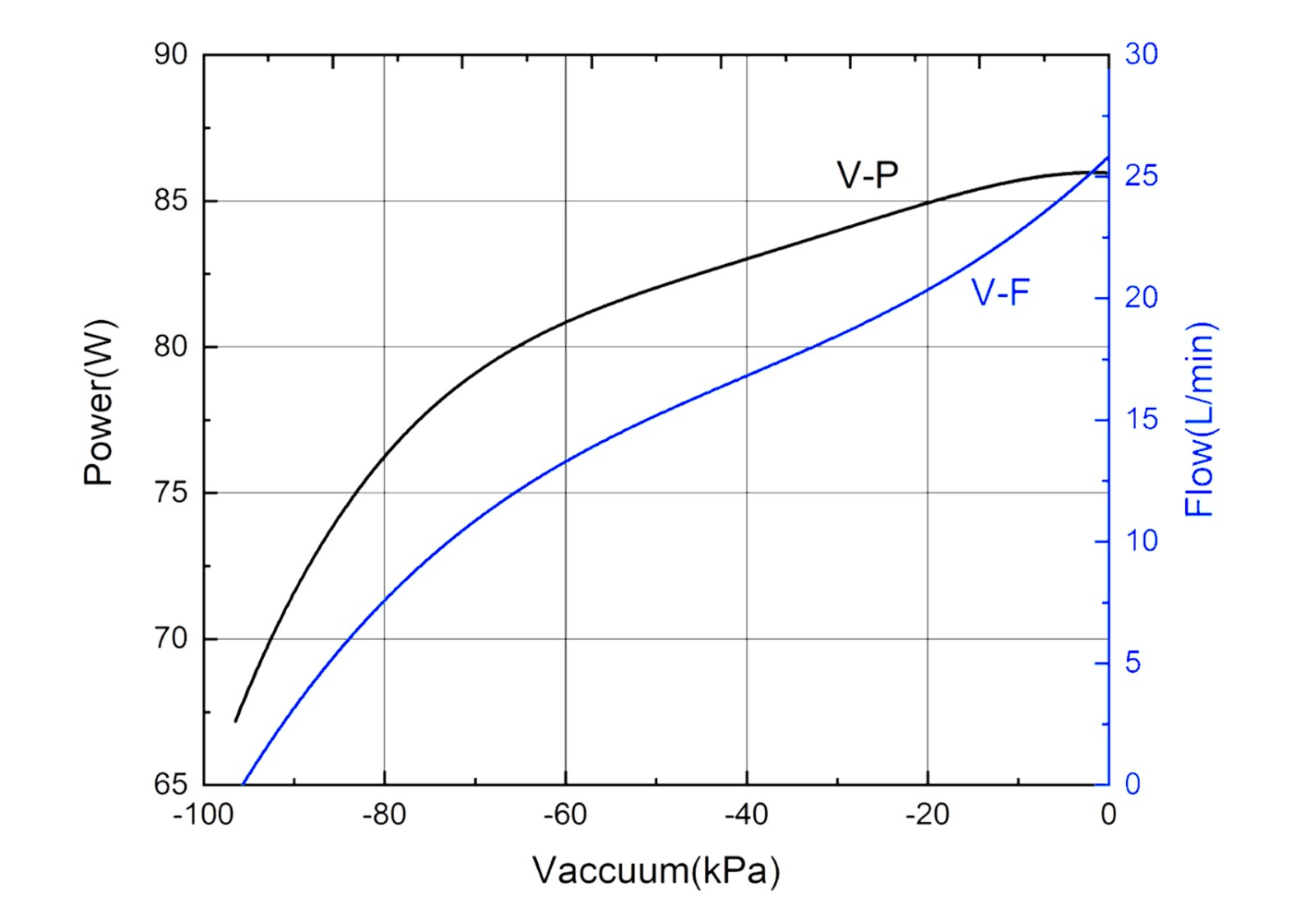

Performance Chart :

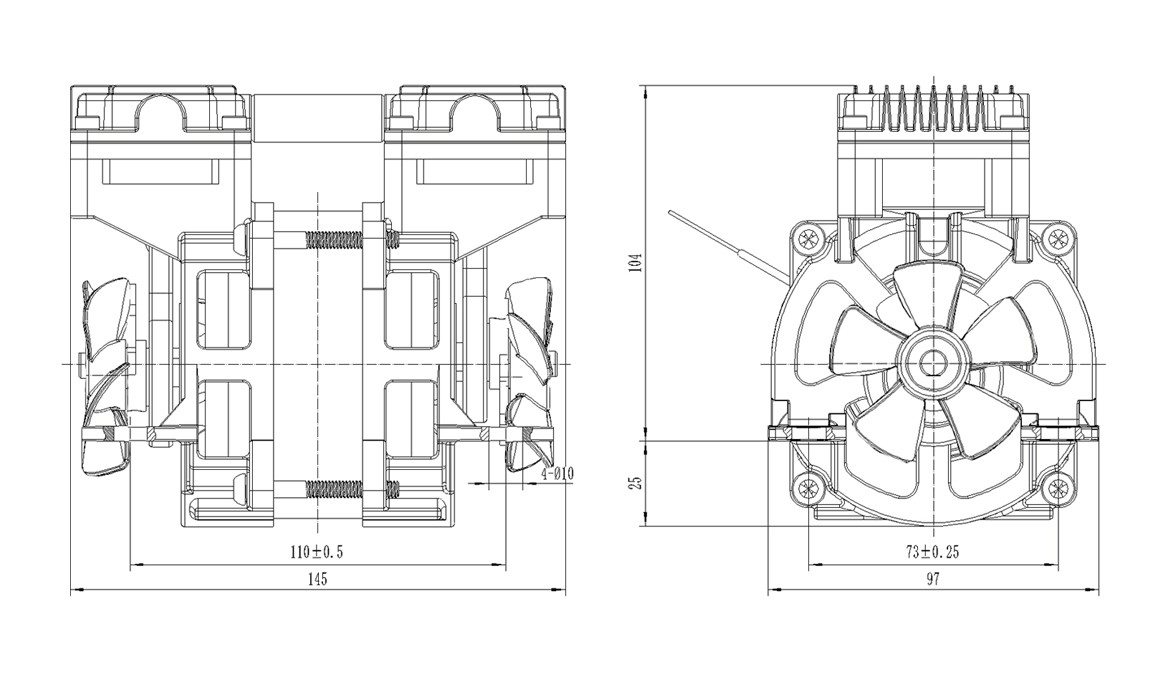

Dimensions:
