Features:
The oil-free compressor prevents oil contamination in the output air, providing cleaner operation, lower maintenance, and longer service life.Runs directly from a vehicle’s 12V DC outlet, so you can use it on the road, on long trips, or while camping.
Typical Application :
Portable 1L Oxygen Generator
Technical- Data:
| Model Number | SMK90D12-17 |
| Head configuration | 12VDC |
| Variable output speed | 2100rpm |
| Flow at rated load | 17L/min |
| Pressure at rated load | 20PSI |
| Current at rated pressure | 7.3A |
| Power at rated pressure | 85W |
| Motor insulation class | F |
| Motor protection | Included |
| Power lead wire color,gauge | Red(phase A),Black(phase B), |
| Yellow (phase C),16 AWG |
| Operating ambient air temperature | 32° to 140°F(0° to 60℃） |
| Safety certification | ETL |
| Net Weight | 0.8kg |

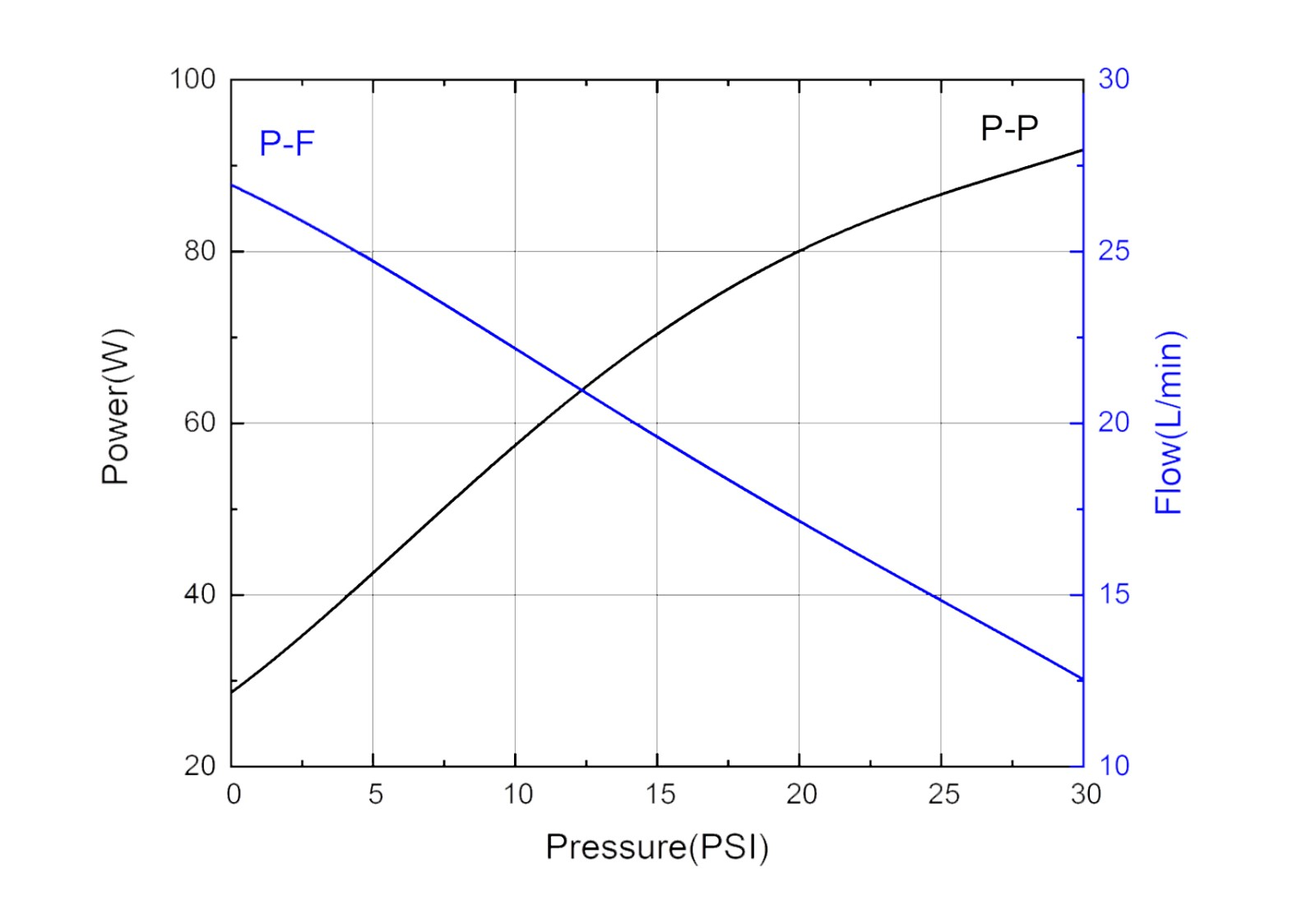

Performance Chart :

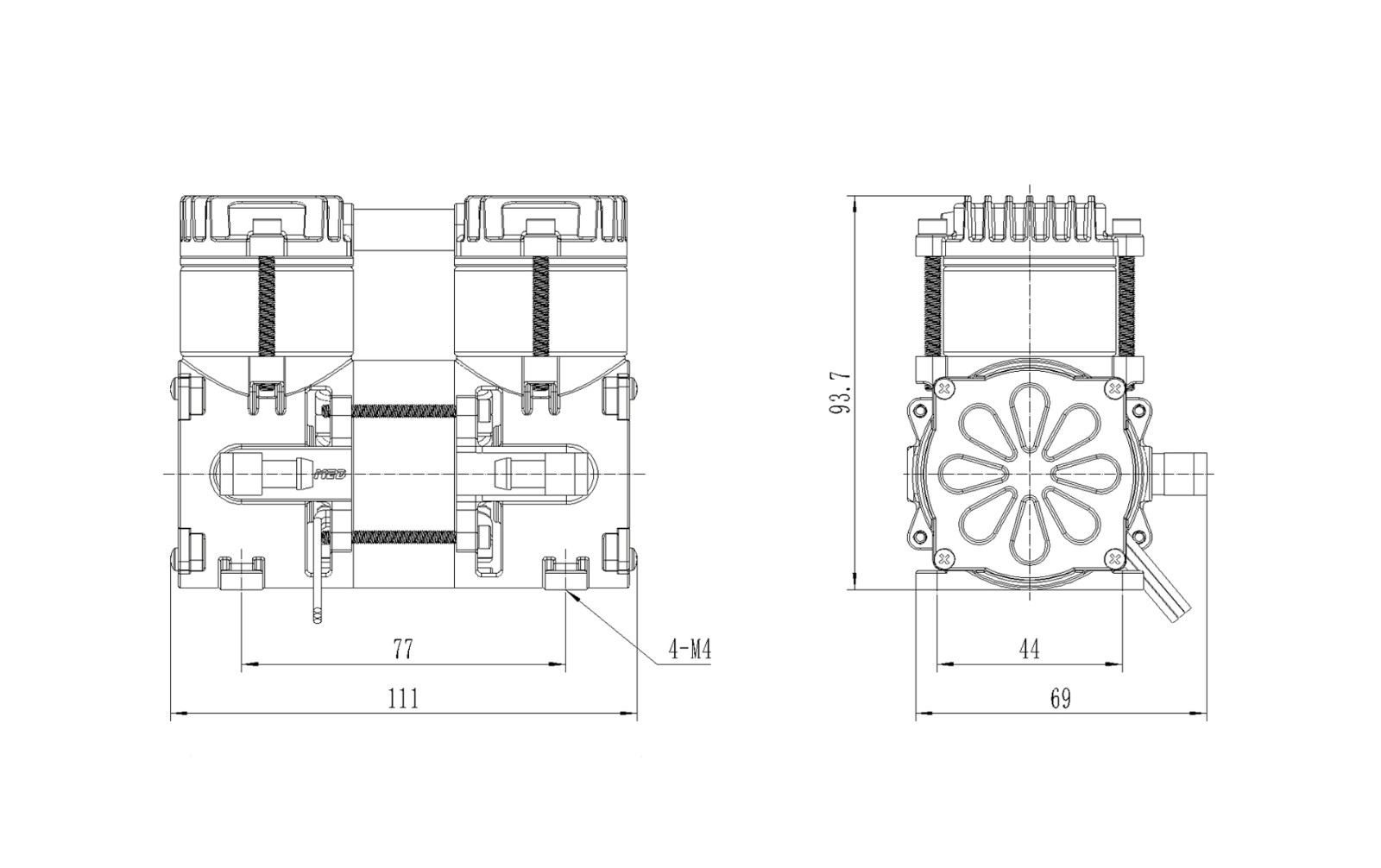

Dimensions:
